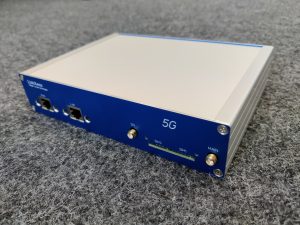

mobileXess 5G

Online Access – everywhere, everytime, everyplace

mobileXess 5G provides telecommunication access for data, voice, SMS and MMS at any place. Additional integrated features like GPIOs enables a wide range of use cases for access and Internet of Things (IoT) and other applications.

High Throughput & Redundancy
The two 5G channels allow solutions for accessing different mobile networks at the same time for higher bandwidth throughput, redundancy & reliability by splitting the traffic through different mobile carriers and different services. With VPN, Channel Bonding and other typical applications the number of use cases are nearly unlimited.

High Bandwidth
With the two 5G channels of the mobileXess 5G, a throughput up to 3400 Mbits can be achieved. The integrated channel bonding feature allows different methods to increase the bandwidth and/or minimize the risk of restricted bandwidth by using different mobile carriers.

Voice, SMS & MMS
The built-in voice and VoIP features provide full voice access for in- & outbound calls to enable telephony service anywhere & anytime. Various interfaces allows the transmission of SMS & MMS too. With the integrated VPN solution and the data & voice features a secure link for data & voice communication to a trusted peer can be realized.

Higly integrated for various applications
The wide range DC power input allows the operation in any vehicle, vessel or any other location with battery or cord power. The integrated antenna combiner enables the best coverage and throughput with just four antennas. Also, the integrated GPIO support various IoT applications.


Specifications
Network Interfaces 10/100/1000/2500 Mbits Base-T (RJ45)
WLAN 802.11b/g/n (optional)
Mobile Access 5G:
n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38
n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
5G SA Sub-6:    DL 2.4 Gbps & UL 900 Mbps
5G NSA Sub-6: DL 3.4 Gbps & UL 550 Mbps
4G/LTE:
FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B28/B29/B30/B32/B66/B71
TDD: B34/B38/B39/B40/B41/B42/B43/B48
DL 1.6 Gbps (CAT 19) & UL 200 Mbps (CAT18)
WCDMA:
B1/B2/B4/B5/B6/B8/B19
DL 42 Mbps & UL 5.76 Mbps
SIM: 2 x local microSIM or remote SIM
Antenna:
MIMO: 4 x SMA
Power Wide range DC: 6V – 36V, 20W
AC/DC power supply
Chassis Desktop chassis
Dimensions: 222 x 43 x 143 mm
IP routing IPv4, IPv6, Dual Stack
Integrated IP router / firewall
Channel Bonding / Load Balancing
VPN
NAT, DHCP, etc.
Voice via VoLTE/UMTS/GSM – depending on network
SIP (RFC 3261 ff)
Codecs: G.711, G.729, G.722, T.38
Integrated SIP registrar
USSD via 2G/3G
via 4G/5G (IMS)
Maintenance Over the air (OTA)
Remote provisioning
Event & alarm management
